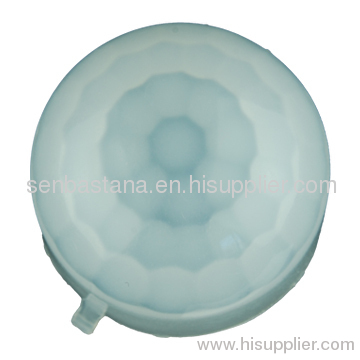

Cheap Optical Fresnel Lens 22.5mm S9004 manufacturer from China Shenzhen Senba Optical Electronic Co., Ltd

Payment Terms:	T/T,
Place of Origin:	Guangdong, China (Mainland)

Product Detail

Model No.: S9004

Packing: 4000pcs/pack

Brand Name: Senba

Material: HDPE

Overall size: 22.5mm

Focal length: 10.5mm

Viewing angle: 100°

Production Capacity: 80000pcs/day

Delivery Date: 5 working days

Size: 22.5mm

Use: see following

Lens size: 22mm

Detectable distance: 8m

Human Motion Detector fresnel lens
1.OEM Factory
2.Material HDPE
3.MOQ 1000PCS
4.Can produce according to customer's request

Passive Infrared Human Motion/Body Sensor/Detector Fresnel Lens

Fresnel lens arrays designed for passive infrared sensor.the The optical surfaces are increases lens sensitivity for PIR SENSOR applications.

Specification

Overall size:22.5mm
Lens size:22mm
Focal length: 10.5mm
Detectable distance: 6m
Viewing angle: 100°

Sape: Dome

Material: HDPE

Features

Designed for passive infrared sensor applications

Well suited for compact, low profile sensors

Can be used in applications involving security, lighting controls and environmental controls

Optimized for dual element pyroelectric devices

White light immunity to reduce false triggers

UV resistant for outdoor applications

Designed for uniform sensitivity to reduce electronic gain

Widely used in Security system,alarm,lighting,lighting switch etc.
